Introduction

This page contains "normal" electronic projects with low-integrated circuits.
Last time updated: 18.06.2018 20:40

IR-PAM

Description: These circuits transmit an audio signal using AM-modulation over an infrared connection. For easy AM modulation the pulse AM modulation technique has been used.

Sender.
Sender.

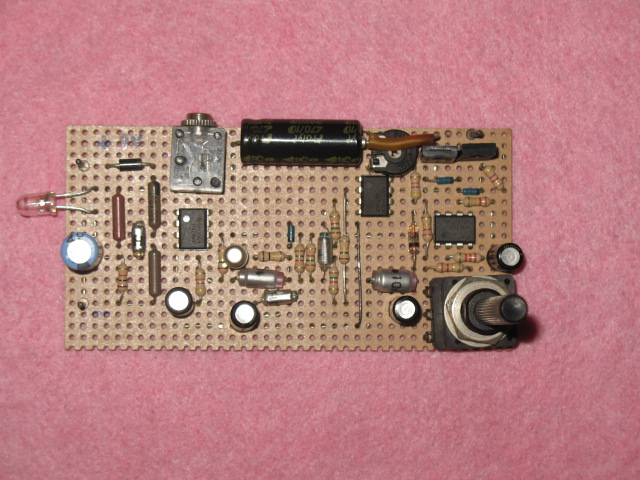

Receiver.
Receiver.

Sinusgenerator

Description: This circuit is a simple sine generator based on a phase-shifting oscillator.

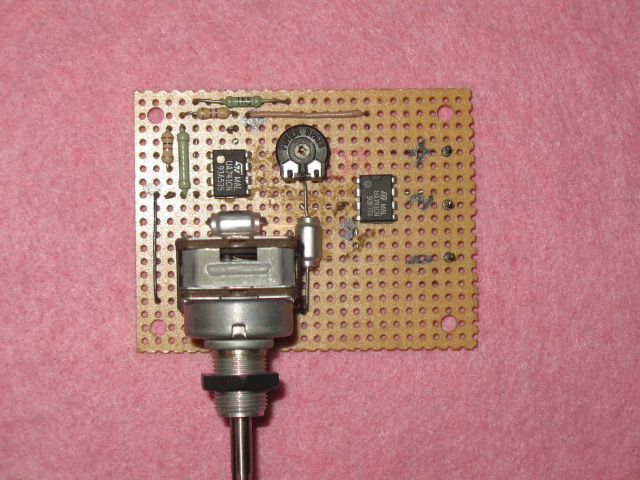

Sine generator.
Sine generator.

Gegentaktverstärker

Description: This circuit contains a transistor-based amplifier with an opamp-based preamplifier.

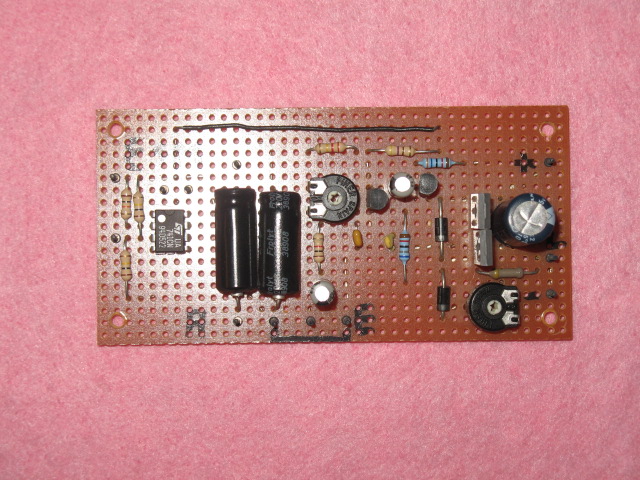

Amplifier.
